Gabion Baskets Prices Galvanized 1mx1mx3m Gabion Boxes PVC Coated Gabion Basket
Gabion Cage Description :

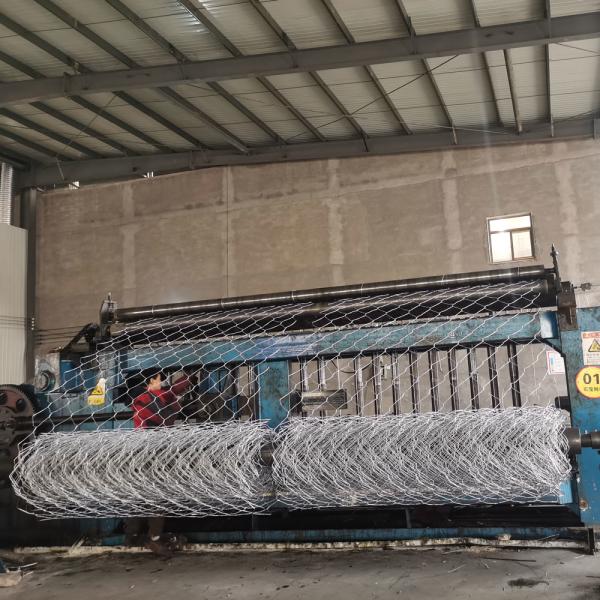

Gabion basket is an ecological grid structure. The stone cage net is mechanically woven from low-carbon steel wire with high corrosion resistance, high strength and ductility or PVC-coated steel wire. The box-shaped structure made by the net is the stone cage. The diameter of the low carbon steel wire used varies according to engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the steel wire is not less than 38kg/m2, and the metal coating weight is generally higher than 245g/m2. The diameter of the edge wire of the gabion mesh is generally larger than the diameter of the wire. The length of the twisted part of the double wire shall not be less than 50mm. To ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
| gabion specifications | Mesh hole modle |
| | 8x10cm | 6x8cm |
| Length(m) | Width(m) | Height(m) | Galvanized or PVC coated | Galvanized or PVC coated |
| | Mesh diameter | Zinc | Mesh diameter | Zinc |
| 2 | 1 | 1 | 2.7mm | >245g/m² | 2.0mm | >215g/m² |
| 3 | 1 | 1 | Side wire diameter | Zinc | Side wire diameter | Zinc |
| 4 | 1 | 1 | 3.4mm | >265g/² | 2.7mm | >245g/m² |
| 6 | 1 | 1 | Binding wire diameter of 2.7m | Binding wire diameter of 2.0m |
Gabion Cage Material :
1. hot-dip galvanized low carbon steel wire,
2. Zinc-5%Al or10%Al-mixed rare earth alloy coating, also named Galfan. lifetime 3times min than hot-dip galvanized gabion.
3. PVC coated , PVC coated on hot-dip galvanized steel wire and Galfan, many kinds of color
4. Tensile strength: 350-500Mpa,Elongation ≥12%,according to EN10223-3
5. zinc coating: mesh wire≥230g/M2,selvedge wire≥245g/M2,lacing wire ≥230g/M2
Gabion Cage Applications :
The structure can be used for side slope support, foundation pit support, mountain rock surface hanging net shotcrete, side slope vegetation (greening), railway highway isolation fence, it can also be made into box cages, net pads, used in rivers, rivers, Erosion protection of dams and seawalls, as well as cages for the closure of reservoirs and rivers.
Control and guide rivers and floods
The most serious disaster of rivers is the destruction of river banks by water, which caused flooding, resulting in massive losses of lives and properties and massive soil erosion. The application of the ecological gabion net structure can permanently protect the river bed and bank.
Channel canal bed
The construction of the channel involves the stability of the slope and river bed. It can effectively and permanently protect the river bank or riverbed, control the flow of water, prevent water loss, and has excellent effects in environmental protection and water quality maintenance.
Slope protection
The application of ecological grid structure to river bank protection and slope toe protection is a very successful example. It gives full play to the advantages of ecological grid and achieves the ideal effect that other methods cannot achieve.
Gabion Cage Advantage:
Flexibility: Flexibility is an important benefit of any gabion structure. The double-twist hexagonal mesh construction permits it to tolerate differential settlement without fracture. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.
Durability: Gabions support plant growth which provides a live coating for the wire mesh and stones, adding to their durability. Generally, the wire mesh is needed for the first few years of the structure’s life; later the void between the stones is filled with soil, silt, and plant roots which act as a bonding agent for the stones.
Strength: Steel wire hexagonal mesh has strength and flexibility to withstand forces generated by water and earth masses, and the pervious nature of the gabion allows it to absorb and dissipate much of that energy. This is evident on coast protection installations where gabion structures remain effective long after a massive rigid structure fails. Additionally, the double twisted hexagonal mesh won’t unravel if cut.
Permeability: Gabion walls are previous to water and stabilize slopes by the combined action of draining and retaining, precluding the development of hydrostatic pressure behind the gabion wall. Drainage is accomplished by gravity, as well as evaporation as the porous structure permits air circulation through it. As plant growth develops within the structure, the process of transpiration assists in removing moisture from the backfill – a much more efficient system than weep holes in standard masonry walls.
Low cost: Gabion systems are more economical than rigid or semi-rigid structures for the following reasons:
• It requires little maintenance
• Its installations does not require skilled labor and stone fill is available on site or from nearby quarries,
• It requires little or no foundation preparation, as the surface needs to be only reasonably level and smooth.
• Gabions are porous, requiring no costly drainage provision
Ecology: Gabions is an environmentally sensitive solution to slope stabilization. It has already been mentioned that stone fill is done with natural stones making the gabions, naturally porous allowing interaction between the land and the water table and also persuades deposition of soil in the smaller voids between the stone fill during drainage that again promote vegetation growth.
