EN 13374 Class A Edge Protection Barrier System Steel Meshguard
The Edge Barrier Protection Safety Fence is mainly made by Welded Wire Mesh Panel, after futher processing, is structurally desighed to secure construction working platforms for a variety of Applications. Such as Railway-Infrastructure, Roof Edge Protection Barriers, Mesh Guard Edge Protection Panels, Pontoon Mesh Edge Protection System For Floating Platforms, and so on.
This simple install system offers maximum protection for site personnel on the construction slabs, around stair and lift wells, excavations etc. The removable panels, with built-in kickplates, and post system is easily transported, installed removed and stored.
Product Description :
SHUXIN company has been developed to offer an alternative safety system for the most challenging construction environments - combining a range of valuable benefits such as strength, durability, speed of installation and adjustability. The barrier is light to carry and easy to manoeuvre for improved transport and on-site handling
The Edge Protection Federation, a single authoritative body for the industry, describes edge protection as ‘primarily to prevent persons and objects from falling to a lower level’.
The most commonly specified solutions include Mesh Barrier Systems or MBS.
To ensure your edge protection meets the highest standards of safety and performance, we must adhere to the European Standard of Temporary Edge Protection – EN 13374. This applies to edge protectionsystems for flat and inclined surfaces and specifies the requirements for three classes of temporary edge protection. These are known as Class A, Class B and Class C.
Class A – protection to flat surfaces and slopes generally up to 10 degrees.
Class B – protection to flat surfaces and slopes up to 30 degrees.
Class C – protection to steeply sloping surfaces up to 60 degrees.
Our Edge Protection Mesh Barriers comply to EN 13374 Class A (although some providers also supply barriers complying to Class C) and incorporate guardrail, toe board and mesh infill in one. This method provides a high level of containment and often enhances the feeling of operative safety. Mesh barriers are considered to be simple to install as they require no specialist skills but also offer a professional look to a construction site. There are extensive attachments and accessories for this system which enables it to be applied to virtually any construction project.
Size : 2600 x 1150mm
Weight : 20kg
Features of Edge Protection system :
- Fully automated welded steel mesh with integral toeboard.(260mm)
- Galvanised wire with Powder coat finish to customer’s colour
- Tested to EN13374 Class A and B withstanding Static and Dynamic loading
- Close mesh spacing (60mm vertically) with 1.15m overall height
- Customer’s Logo can be attached on toeboard
 | Weight 20 kg
2.6 x 1.15m
Powder-coated
Conforms to EN 13374, class A
Barrier Frames Manufactured from high quality steel
It also has continous Wire, no cut wire, make the Temporary Portection Fence Smooth, Flat and Straight.
|

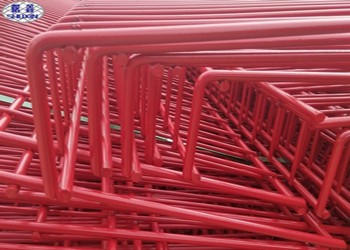

 | Bending on the Top of Edge Protection Fence There is a 90 Degree Bending on the top of Temporary Edge Protection Fence,
The Edge Safety Protection Fence can recycle many times.
|
 | Power Coated in a range of colours, accept customized with company logos in order to satisfy anyclient’s requirements
Powder Coated Surface Treatment is more bautiful and anti-rust,
Make its long using life to save the cost,
|
Product Tags:
|
|

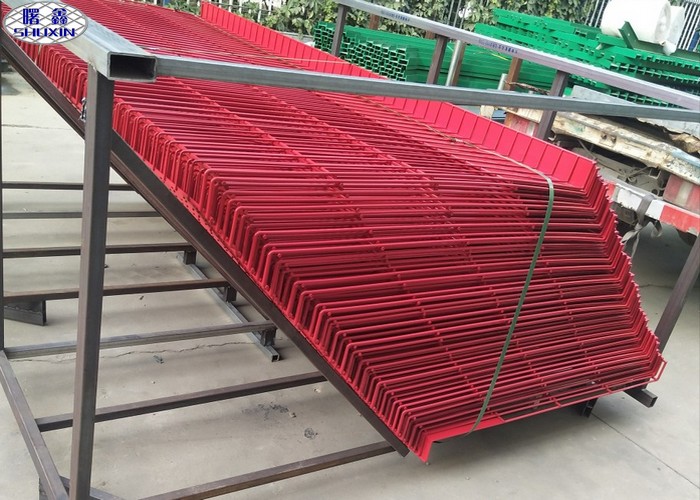

EN 13374 Class A Free Standing Edge Protection Systems Steel Meshguard Images
|
